How Shengmao Machinery’s Concrete Reclaimers Eliminate Emissions in Modern Ready-Mix Batching Plants

       In today’s heavy infrastructure and ready-mix concrete (RMC) sector, environmental compliance is no longer an afterthought—it is a core operational metric that dictates commercial viability. The conventional practice of dumping residual concrete slurry and washout water into open settling lagoons creates severe environmental liabilities: groundwater alkalinization, heavy particulate emissions, and costly landfill disposal fees.

Shengmao Machinery’s Heavy-Duty Sand and Gravel Separator (Concrete Recycling System) is engineered to transform ready-mix waste into immediate economic value and environmental compliance. By establishing an automated, closed-loop recovery cycle for aggregate, sand, and alkaline water, Shengmao equipment enables concrete batching plants to eliminate solid and liquid waste discharges, reduce virgin aggregate consumption, and drastically shrink their overall carbon footprint.

1. The Environmental Challenge in Ready-Mix Concrete Operations

A typical medium-to-large ready-mix concrete batching plant operating 20 to 50 mixer trucks generates significant waste daily:

• Residual Concrete: 1.5% to 3.0% of daily output remains in truck drums and plant mixers as leftover batch and wall build-up.

• Washout Water: Hundreds of liters of high-alkaline wastewater (pH 11.5–13.0) per truck per cycle.

• Solid Waste Accumulation: Tons of hardened concrete debris requiring crushing or off-site landfill haulage.

Key Emission Vectors Without Automated Reclamation

1. Water Contamination: High-pH slurry containing suspended solids, dissolved calcium hydroxide, and chemical admixtures can leach into surrounding soil and aquifers if uncontained.

2. Dust and Airborne Particulates: Drying residual slurry generates fugitive dust (PM_{2.5} / PM_{10}) across plant yards.

3. Resource Waste and Scope 3 Emissions: Discarding usable aggregate increases demand for newly quarried stone and sand, driving up upstream extraction and transportation fuel consumption.

2. Shengmao’s Closed-Loop Engineering Architecture

Shengmao Machinery approaches waste management not as a disposal problem, but as an in-line material separation and recovery workflow.

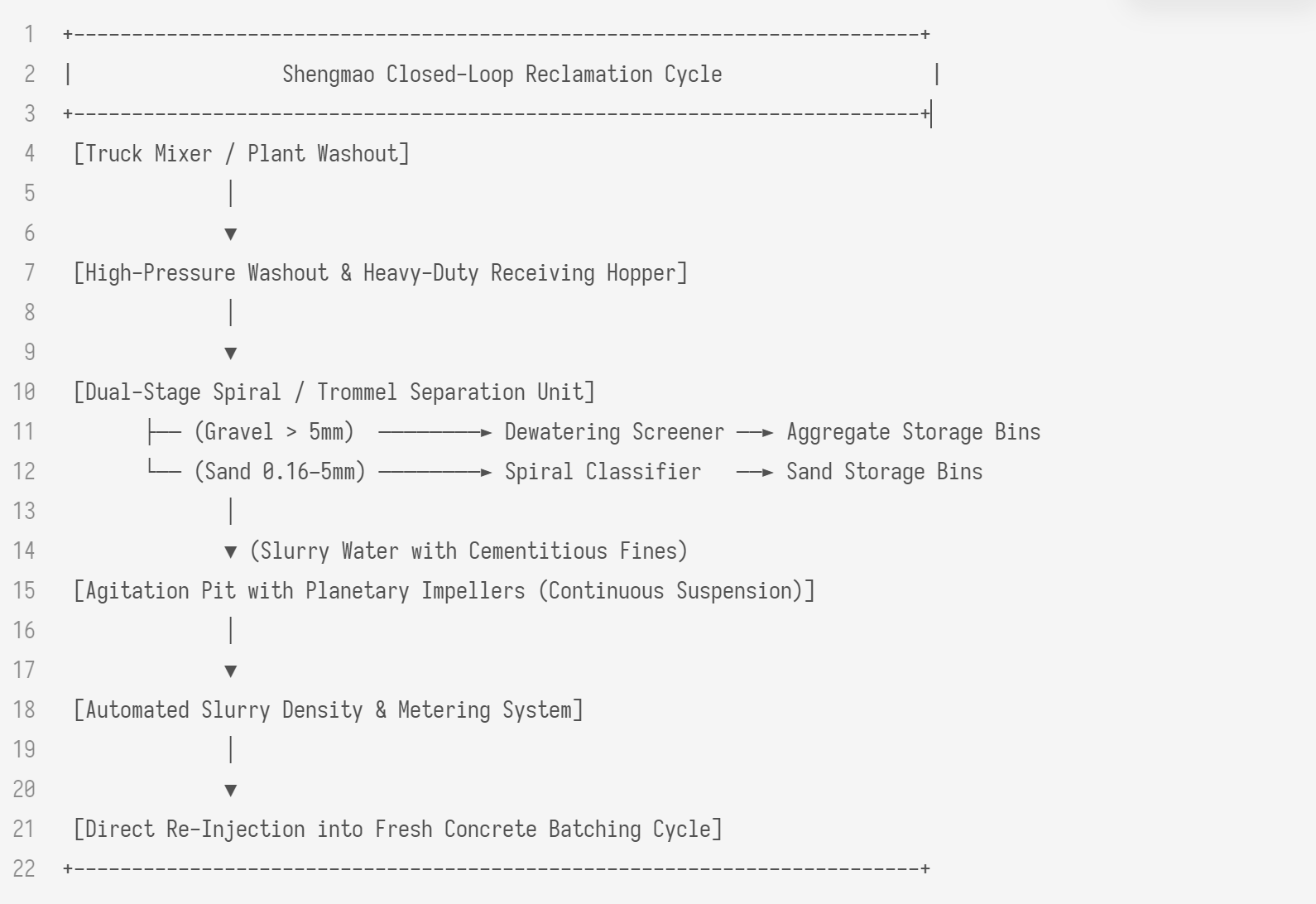

Technical Workflow:

1. Rapid Multi-Vehicle Washout: Mixer trucks back into Shengmao's heavy-gauge receiving hopper. Automated high-pressure spray manifolds deliver high-volume turbulent wash water to rapidly scour drums.

2. High-Precision Mechanical Separation:

• A robust spiral classifier and trommel screen system separates coarse gravel ($\ge 5\text{ mm}$) and fine sand ($0.16\text{ – }5\text{ mm}$) through controlled hydrodynamic buoyant separation.

• High-torque, wear-resistant alloy flighting ensures continuous throughput without aggregate jamming or excessive component abrasion.

3. Continuous Slurry Homogenization: The separated slurry water containing unhydrated cement particles and mineral admixtures drains into an underground agitation basin equipped with cyclic planetary stirrers to prevent solid sedimentation.

4. Controlled Re-Batching: Slurry density sensors and automated pumps inject the homogenized water back into the main batching computer, substituting fresh mixing water in compliant concrete design ratios.

3. Four Core Pillars of Emission Reduction & Environmental ROI

Pillar 1: 100% Solid Waste Diversion (Zero Landfill)

• Mechanics: Coarse aggregates and river sand are fully classified, washed, and dewatered before being conveyed back to aggregate storage bays.

• Result: Complete elimination of hardened concrete dumps, avoiding hazardous waste categorization and eliminating third-party disposal costs.

Pillar 2: Zero Liquid Discharge (ZLD) of Alkaline Wastewater

• Mechanics: The plant operates on a 100% closed water circuit. No slurry water ever leaves the facility boundary.

• Result: Eliminates runoff risks, groundwater contamination penalties, and the ongoing labor cost of manually dredging settling ponds.

Pillar 3: Fugitive Dust Suppression & Site Cleanliness

• Mechanics: Wet-process enclosed separation prevents drying silt from becoming windborne particulate matter. Integrated misting shields at the hopper entrance trap dust during truck discharge.

• Result: Keeps the batching plant compliant with municipal clean air standards and creates a safer, cleaner working environment for operators.

Pillar 4: Embodied Carbon & Resource Conservation

• Mechanics: Recovering sand and stone directly at the yard reduces the plant's demand for virgin quarry products.

• Result: Substantially reduces the diesel consumption and carbon emissions associated with aggregate quarrying, hauling, and offsite waste transport.

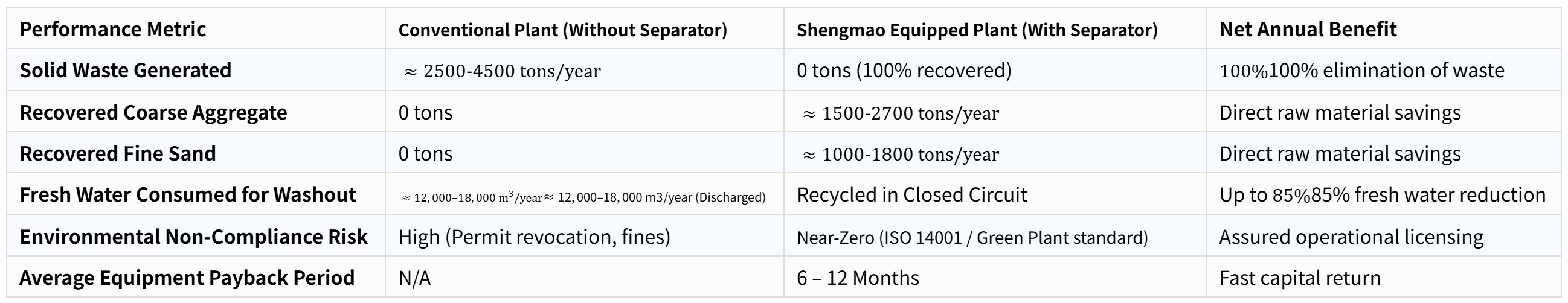

4. Quantitative Environmental and Financial Performance

For a standard commercial batching plant producing $150,000{\text{ m}}^3$ of concrete annually:

5. Engineering Reliability: Built for Heavy Industrial Duty

Shengmao Machinery understands that uptime is the lifeblood of ready-mix operations. Our sand and gravel separators are engineered with industrial-grade durability:

• Wear-Resistant Liner Plates: High-manganese / Hardox-equivalent alloy liners protect high-impact zones against aggressive aggregate wear.

• Heavy-Duty Planetary Gearbox & Motor: High torque ratings ensure immediate startup even under partial slurry load.

• Intelligent PLC Control: One-touch automated start/stop, multi-vehicle queue management, and automatic anti-clog reverse rotation.

• Modular Layout: Configurable for single-truck, double-truck, or four-truck simultaneous washout stations, matching small modular setups to mega-scale commercial plants.

6. Conclusion: Building Sustainable Infrastructure with Shengmao

As environmental regulations tighten globally from Southeast Asia to the Middle East, Central Asia, and the Americas, concrete batching plants must evolve from high-emission production yards into clean, resource-efficient manufacturing hubs.

Shengmao Machinery’s Sand and Gravel Separator is more than an environmental add-on; it is a strategic investment in operational efficiency, raw material recovery, and sustainable engineering excellence. By transforming plant washout from an environmental hazard into reusable resources, Shengmao empowers concrete producers to build the modern world with precision, profitability, and zero emissions.

For technical specifications, customized plant layout proposals, or equipment inquiries, contact our international engineering sales team at Shengmao Machinery.
