compulsory type mobile asphalt plant

Share

YLB series of compulsory type mobile asphalt mixing plant is our new product. The design is based on LB series of stationary asphalt mixing plant.


One on hand, YLB series of compulsory type mobile asphalt mixing plant adopts the advantages of LB series of staionary asphalt mixing plant, such as: high accuracy of screening and weighing, high quality finished product; on the other hand, It enjoys the following advantages: easy to move to another job site and quick installation; so there will be much more time saved for moving and installing the machine.


YLB seriese of compulsory type mobile asphalt mixing plant  is mainly used for meidum-sized road projects where high-quality asphalt is required and the job site changs frequently. Currently, we have YLB series of asphalt mixing plant with the capacity from 60tph to 160tph.


Welcome to contact us for details and quotations.







  • Product Description
  • Main Features
  • Product Model
  • Application

1. Componenets of YLB series of compulsory type mobile asphalt mixing plant:


1) Cold aggregate bins;

2) Drying drum;

3) Burning system, the fuel can be light oil, heavy oil, gas or coal;

4) Hot aggregate elevator;

5) Powder lifting system;

6) Vibrating screen;

7) Hot aggregate storage bins;

8) Aggregate, powder and bitumen scales;

9) Bitumen system: bitumen tank, bitumen pump and heat conduction oil system;

10) Two-level dust catching system. First level: volute casing dust collector; second level: bag house dust collector ;

11) Pneumatic system;

12) twin-shaft mixer;

13) Control system. (The Language can be English, Russian, French and Spanish)

14) Travelling unit: chassis for cold aggregate bin, drying drum, mixing tower, bitumen tank and control room.


2. Details of QLB series of compulsory type mobile asphalt mixing plant.


1) Pictures

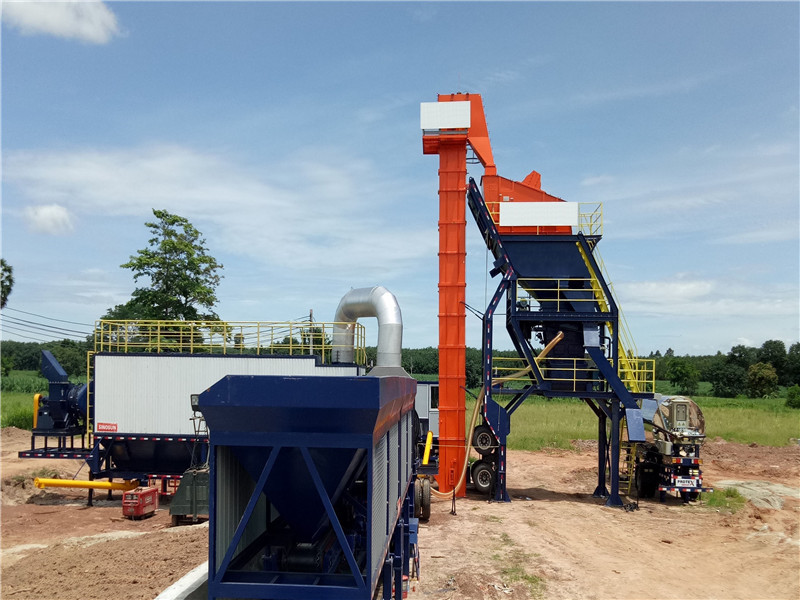

compulsory type mobile asphalt plant

compulsory type mobile asphalt plant

compulsory type mobile asphalt plant

compulsory type mobile asphalt plant

compulsory type mobile asphalt plant

2) Specifications


 ModelYLB700YLB1000YLB1200YLB1500YLB2000
Production Capacity (T/h)6080100120160
Mixer Capacity (kg)7501000120015002000
Dust Remove Effect (mg/Nm3)≤20≤20≤20≤20≤20
Fuel Consumption (kg/t) (Oil)5.5-75.5-75.5-75.5-75.5-7
Fuel Consumption (kg/t) (Coal)1010101010
Aggregate Weighing Accuracy (%)±0.5±0.5±0.5±0.5±0.5
Filler Weighing Accuracy (%)±0.25±0.25±0.25±0.25±0.25
Bitumen Weighing Accuracy (%)±0.25±0.25±0.25±0.25±0.25
